OSDM Demo Tutorial – Making of ‘Oh Xee A Moron Demo’

Hi Folks,
Here is another Oldskool Demomaker Demo Tutorial of my popular production “Oh Xee A Moron, Part 1“.

You can download the final Windows Executable here (Roy-Demo-Oh_Xee_A_Moron.zip)

Also, all elements, such as 3D Objects, Images, Fonts and the Preference .INI Configuration file are also available for download here (OhXeeAMoron.zip)

Watch Video Capture

To get an idea how the final product looks like, without touching OSDM or downloading anything, watch the video capture that I created below.

Backup URL to Video on vimeo (http://www.vimeo.com/13534545).

Backup Links to Vimeo and YouTube, as well as additional download options (e.G. a Full Screen Version of the Demo) are available at my official demo release page.

OSDM Settings Screen-By-Screen

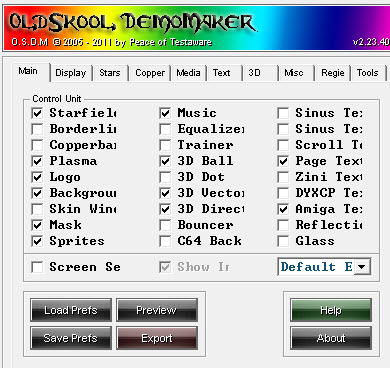

General

Export: Default Export, Enabled Effects :

Star Field
Music
Plasma
3D Ball
Page Text
Logo
Background
3D Vector
3D Direct
Amiga Text
Mask
Sprites

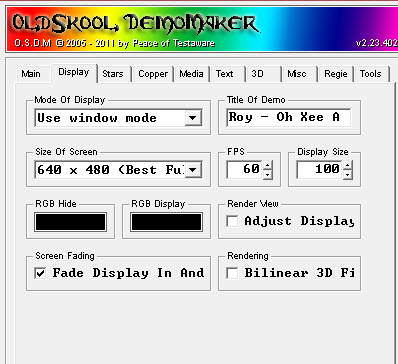

Display

Mode: Use Window Mode*
(*3D Vectors Positions Will be off, if you select ‘Full Screen’!)
Title: Roy – Oh Xee A Moron
Size of Screen: 640 x 480
FPS: 60**, Size: 100
(**Timing will be off, if you set it to something else)
RGB Hide & RGB Display: Black
Render View, Adj Display: False
Fade Display In and Out: True
Bilinear 3D Filt.: False

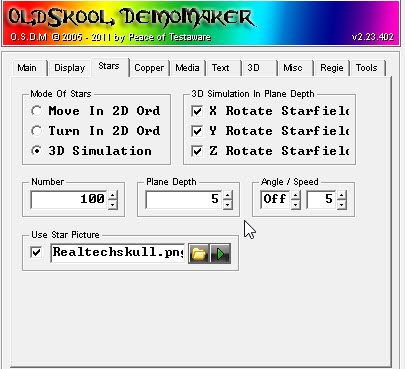

Stars Effect

Mode: 3D Simulation
3D Sim: X Rot: True, Y Rot: True, Z Rot: True
Num: 100, Plane Depth: 5, Angle: Off, Speed: 5
Use Star Picture: True, Image: Realtechskull.png

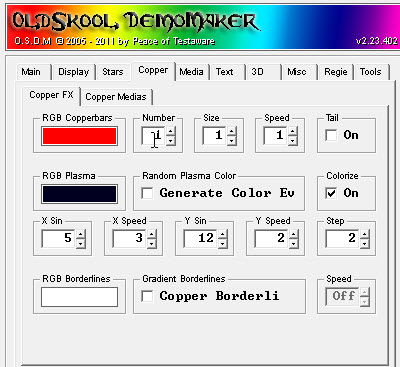

Copper FX (Plasma)

RGB Plasma: R=0, G=0, B=32
Random: False, Colorize: True
X Sin: 5, X Speed: 3
Y Sin: 12, Y Speed: 2
Step: 2

Export Settings

Icon: RoySAC.ico
CPU Delay: 1
Start Screen Pic: Roysacny2010-loading2.png
Exit by Key: [ESC]

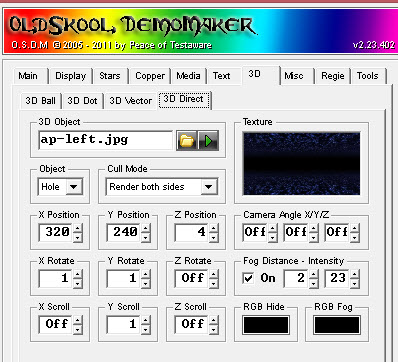

3D Direct

3D Object: ap-left.jpg
Object: Hole, Cull Mode: Render Both Sides
X Pos: 320, Y Pos: 240, Z Pos: 4
Camera Angle X/Y/Z: Off
X Rot: 1, Y Rot: 1, Z Rot: Off
Fog: True, Distance: 2, Intensity: 23
X Scroll: Off, Y Scroll: 1, Z Scroll: Off
RGB Hide & RGB Fog: Black (R=0, G=0, B=0)

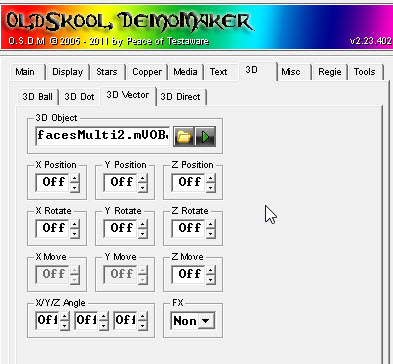

3D Vector

3D Object: facesMulti2.mVOBJ
Compressed Multi-VOBJ with 5 .VOBJ Objects
Settings: Everything = Off

The Objects

ID=0 (Face)	ID=1 (Skull)	ID=2 (Hand)	ID=3 (Twisty)

ID=4 (RoySAC Logo)

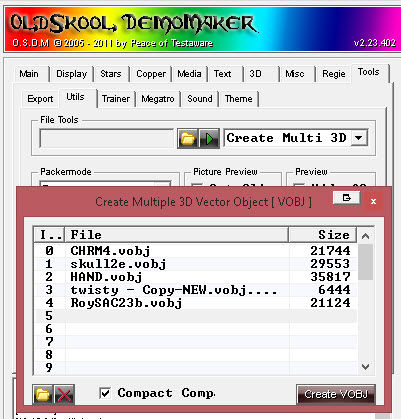

Create Multi-VOBJ Tool

Included in the package with all the elements of the demo is already the multi-vector object file (.mVOBJ). But for illustration purposes, I also included the 5 individual (and uncompressed) vector objects (.VOBJ).

To the left is a screen shot of the OSDM build-in tool to merge and compress the objects.

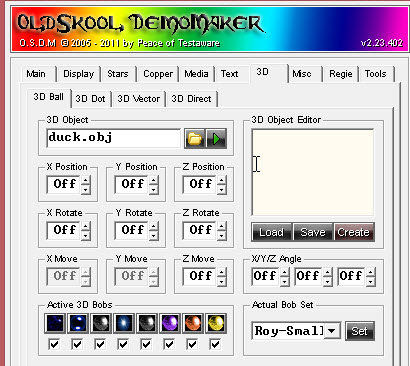

3D Ball

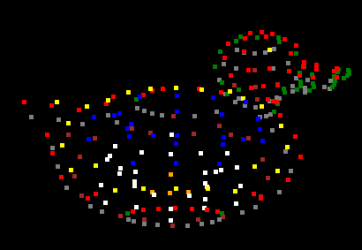

3D Object: duck.obj
Everything = Off
Bobs Balls

0 1 2 3

4 5 6 7

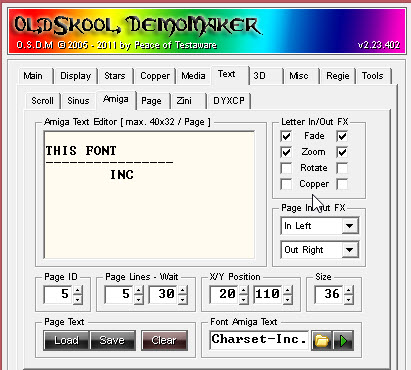

Amiga Text

Letter In/Out Fx, In & Out: Fade & Zoom
Page In: In Left, Page Out: Out Right
Page Lines: 5, Wait: 30
X/Y Pos: 20/110, Size: 36
Font: Charset-Inc._stoneage2.png

Text (7 Pages):

Page 1:


DEMO CREDITS
----------------
COMING UP

Page 2:


CODE
----------------
PEACE - BOBO
    EPYX

Page 3:


GFX AND DESIGN
----------------
    ROY

Page 4:


MUSIC "GRIJALBO"
----------------
   ESTRAYAK

Page 5:


THIS FONT
----------------
        INC

Page 6:

$
$
$

Page 7:

$
$
$
$

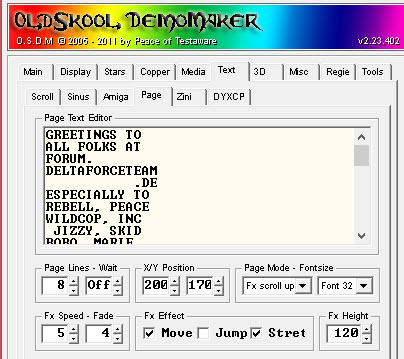

Page Text

Page Lines: 8, Wait: Off, X/Y Pos: 200/170
Mode: Fx Scroll Up, Font-Size: Font 32
Fx Speed: 5, Fade: 4
Fx Effect: Move, Stretch, Fx-Height: 120

Text:

GREETINGS TO
ALL FOLKS AT
FORUM.
DELTAFORCETEAM
           .DE
ESPECIALLY TO
REBELL, PEACE
WILDCOP, INC
 JIZZY, SKID
BOBO, MARIE
 TWILIGHT
DRAGON, JANER
SYNTH, GENOM

NOTE:

THIS IS NOT
AN OFFICIAL
SAC RELEASE,
AS ALL OF MY
  OSDM
PRODUCTIONS.

   CHEERS!
 CARSTEN AKA
 ROY OF SAC

    ....
   . .. ..
    ..    .
      .  .
   ..    ..
   . .  .
     ..  ..
    ..   .

Logo

Image: dotcom3.png
Animation: off
Logo Effect: 10 – Pulse Zoom, RGB Hide: Black, Zoom: 100, Angle: 4, BFX: Smart
X/Y Position: Center X/Y
Alpha: 90, Fade: True, Speed: 1
FX Speed: 2, X/Y Swing: Off

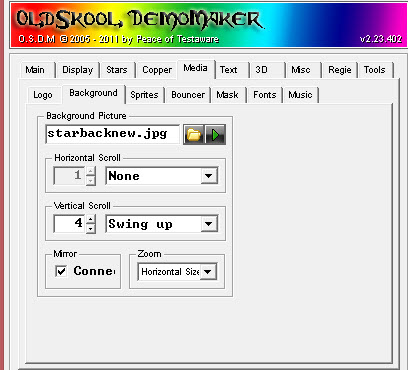

Background

image: starbacknew.jpg
Horizontal Scroll: None
Vertical Scroll: 4 – Swing Up
Mirror: True
Zoom: 3 – Horizontal Size

Sprites

Initial Sprites Settings

#	Name	X/Y-Pos	Ang	Eff	Speed	Alpha	Zoom	Anim	Frms	Delay	Start	Num
0	faceeyesopen2_B9.png	320/240	Off	–	–	100	100	True	9	80	Off	Off
1	Smoke30b_16c_B23.jpg	320/240	Off	–	–	30	710	True	23	35	Off	Off
2	roysacpresents.png	320/240	13	1-Rotate_Left	1	100	45	False	–	–	–	–
3	ANewDemoCalled-Skulls.png	320/240	Off	–	–	100	100	False	–	–	–	–
4	OhXeeAMoron.png	320/240	340	2-Rotate_Right	1	100	100	False	–	–	–	–
5	visitroysaccom.png	320/240	Off	–	–	1	100	False	–	–	–	–
6	fuckingvisit.png	320/240	320	2-Rotate_Right	1	100	100	False	–	–	–	–
7	RadialGradientBG.png	320/240	Off	–	–	100	100	False	–	–	–	–

0 – faceeyesopen2_B9.png	6 – fuckingvisit.png

1 – Smoke30b_16c_B23.jpg	7 – RadialGradientBG.png

2 – roysacpresents.png	3 – ANewDemoCalled-Skulls.png

4 – OhXeeAMoron.png	5 – visitroysaccom.png

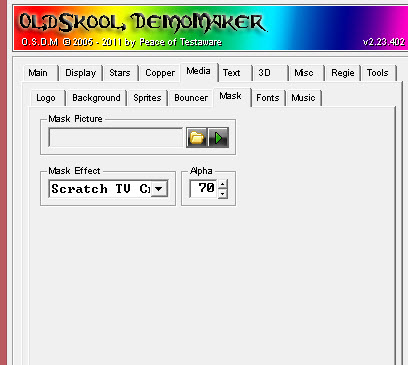

Mask

Mask Effect: Scratch TV Crumble, Alpha: 70

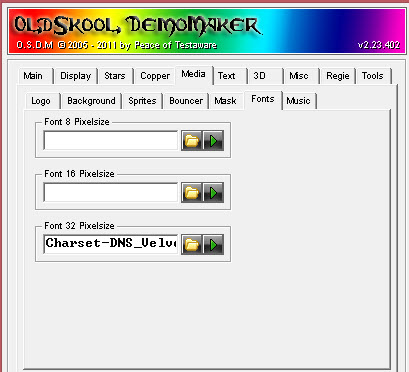

Fonts

Font 32 Pixelsize: Charset-DNS_Velvenda Cooler Font.png

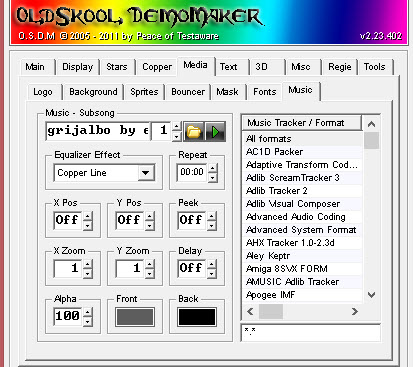

Music

File: grijalbo by estrayak-modified.mod, Track: 1

Script

Make sure that “include Script! [sort effects by Storyboard only]” is Checked

See Script Code below

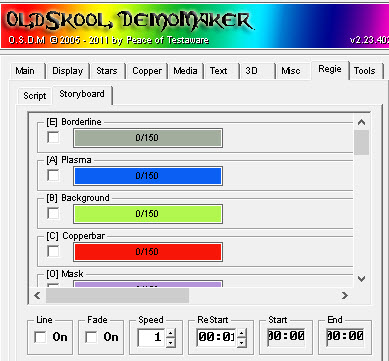

Storyboard

Only Enabled Effects are listed.
All the others don’t matter.

Initial Effects Order

[A] Plasma
[B] Background
[O] Mask
[D] Starfield
[Q] 3D Direct Object
[G] 3D Vector Object
[J] Logo
[I] 3D Ball Object
[N] Page Text
[W] Amiga Text
[X] Sprite

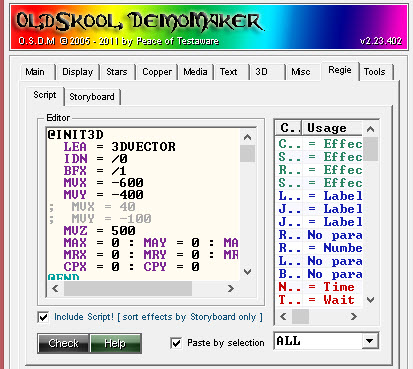

The Script Code

@INIT3D
  LEA = 3DVECTOR
  IDN = /0 : BFX = /1 : MVX = -600 : MVY = -400
;  MVX = 40 : MVY = -100
  MVZ = 500
  MAX = 0 : MAY = 0 : MAZ = 0
  MRX = 0 : MRY = 0 : MRZ = 0
  CPX = 0 : CPY = 0
@END
@INI3DBA
  LEA = 3DBALL
;  IDN = /0
  BFX = /1 : MVX = -500 : MVY = -200
;  MVX = 0 : MVY = 0
  MVZ = 500
@END

FPS = 60
CAL = MUSIC
JSR = 1
JSR = 10
JSR = 20
JSR = 30
JSR = 40
JSR = 50
JSR = 60

CAL = SPRITE : LEA = SPRITE
IDN = 5 : MVA = 255
CAL = DISPLAY
NOP = 1
REP = 99 : ADV = -1 : LOP
NOP = 1
ESC : END

;-----------
LAB = 1
CAL = SPRITE : LEA = SPRITE
IDN = 0 : MVA = 0
IDL = 3DVECTOR
IDN = 2 : MVA = 0
IDN = 3 : MVA = 0
IDN = 4 : MVA = 0
IDN = 5 : MVA = 0
IDN = 6 : MVA = 0
IDN = 7 : MVA = 0
STP = SPRITE
RTS
;---------------
LAB = 10
CAL = SPRITE+3DVECTOR
@INIT3D = 0,2
ADX = -50 : ADY = 75 : ADZ = 1000
REP = 135 : ADZ = -10 : LOP
MRY = 6
LEA = SPRITE : IDN = 1
REP = 100 : ADH = 2 : LOP
LEA = 3DVECTOR : IDN = 0
NOP = 1 : MRY = -6
NOP = 4 : MRY = 6
LEA = SPRITE : IDN = 1
REP = 75 : ADY = -1 : ADH = -1 : ADW = -1 : LOP
LEA = 3DVECTOR : IDN = 0
NOP = 1 : MRY = 0
LEA = SPRITE : IDN = 1
REP = 54 : ADA = -4 : LOP
MVA = 0
IDL = 3DVECTOR : IDN = 0
ADX = -15 : ADY = -50 : MVA = 255
NOP = 2
LEA = SPRITE : IDN = 0 : MVA = 0
LEA = 3DVECTOR : IDN = 0
REP = 50 : ADZ = 80 : ADY = 2 : LOP
RGB = $F00 :CLS = 2
STP = 3DVECTOR+SPRITE
RTS
;---------------
LAB = 20
CAL = 3DVECTOR
@INIT3D = 1,1
ADZ = 600 : MAX = 90 : MAY = -70 : ADY = 120
REP = 50 : ADZ = -12 : ADY = -2 : LOP
MRY = 3
CAL = MASK : NOP = 3 : STP = MASK
NOP = 3 : MRY = -3
REP = 50 : ADX = -2 : ADZ = -1 : LOP
CAL = MASK
REP = 300 : ADX = 1 : ADZ = 3 : LOP
BFX = 4
STP = MASK
REP = 100 : ADX = -1 : ADZ = -4 : LOP
CAL = SPRITE : LEA = SPRITE : IDN = 2
ADZ = 30 : ADY = 100
REP = 54 : ADA = 4 : LOP
MVA = 255
CAL = MASK : NOP = 1
LEA = 3DVECTOR : IDN = 1
MRY = 3
REP = 75 : ADZ = -5 : LOP
STP = MASK
LEA = SPRITE
REP = 54
   IDN = 2 : ADA = -4
   IDN = 3 : ADA = 4
LOP
IDN = 2 : MVA = 0
IDN = 3 : MVA = 255
NOP = 2
CAL = MASK : NOP = 2
LEA = 3DVECTOR : IDN = 1
MRY = -3
REP = 100 : ADZ = 20 : ADX = -1 : LOP
STP = MASK : LEA = SPRITE
REP = 54
  IDN = 3 : ADA = -4
  IDN = 4 : ADA = 4
LOP
IDN = 3 : MVA = 0
IDN = 4 : MVA = 255
NOP = 1
CAL = MASK : NOP = 1
LEA = 3DVECTOR : IDN = 1
REP = 50 : ADZ = 20 : LOP
STP = MASK
LEA = SPRITE : IDN = 4
REP = 54 : ADA = -4 : LOP
MVA = 0 : CLS = 2
RTS

;--------------------
LAB = 30
CAL = 3DDIRECT
@INIT3D = 2,2
ADZ = 5900 : ADY = -400
AAY = 90 : AAX = 10 : AAZ = 20
MRY = -6 : MRX = 6 : MRZ = 8
REP = 100
  AAX = 1 : ADZ = -20 : ADY = 4 : AAX = -1
LOP
REP = 100
  ADZ = -20 : ADY = 2 : AAX = -1
LOP
REP = 100
  ADZ = -10 : ADY = 1 : AAX = 1
LOP
NOP = 1
REP = 100
  ADZ = 10 : ADY = -1
LOP
NOP = 5
REP = 300 : ADY = -4 : LOP
RGB = $100
STP = 3DVECTOR
LEA = SPRITE : IDN = 4 : MVA = 0
STP = SPRITE
RTS

;----------------
LAB = 40
 CAL = BACK
 LEA = 3DDIRECT
 REP = 150 : ADZ = -8 : LOP
 STP = 3DDIRECT : NOP = 1
 CLS = 3
 CAL = 3DVECTOR
 @INIT3D = 3,4
 ADZ = 500 : ADX = 100 : MRY = 30
 CPH = 320 : CPY = 20
 CAL = AMIGATEXT
 LEA = 3DVECTOR : IDN = 3
 REP = 1500 : ADY = -3 : LOP
 REP = 200 : ADX = 3 : LOP
 STP = 3DVECTOR+DISPLAY
 NOP = 1
 STP = AMIGATEXT+BACK
RTS

;-----------------
LAB = 50
CAL = PLASMA+3DBALL
@INI3DBA = 0,2
MRX = 15 : MRY = 15 : MRZ = 15
ADZ = 500 : ADX = -400
CAL = DISPLAY+PAGE
REP = 200 : ADX = 2 : LOP
REP = 125 : ADZ = 1 : LOP
CAL = MASK : BFX = 1
REP = 125 : ADZ = 1 : LOP
STP = MASK : BFX = 2
REP = 250 : ADZ = 1 : LOP
CAL = MASK : BFX = 3
REP = 150 : ADZ = -1 : LOP
STP = MASK : BFX = 4
REP = 150 : ADZ = -1 : LOP
REP = 150 : ADZ = -1 : LOP
CAL = MASK : BFX = 1
REP = 150 : ADZ = -1 : LOP
STP = MASK : BFX = 4
REP = 100 : ADX = 2 : LOP
STP = DISPLAY : NOP = 1
STP = PAGE+3DBALL+PLASMA
RTS

;-----------------
LAB = 60
CAL = STARS+PLASMA+SPRITE
LEA = SPRITE
IDN = 6 : MVA = 0
IDN = 1
IDL = 3DVECTOR
MVA = 30 : ADZ = 100 : ADS = -100
SFX = 2 : BFX = 2
CAL = 3DVECTOR
@INIT3D = 4,4
ADX = -50 : ADZ = 4400
CAL = DISPLAY+MASK
LEA = MASK
IDL = 3DVECTOR : LEA = 3DVECTOR : IDN = 4
REP = 180
    AAX = 2 : ADZ = -10
    IFR > 8 : ADY = 1
LOP
AAX = -360
STP = MASK
REP = 184
    AAX = 2 : ADZ = -10
    IFR > 8 : ADY = 1
LOP
MRX = 0 : MRY = 25 : BFX = 4
CAL = LOGO
LEA = 3DVECTOR : IDN = 4
IDL = SPRITE
REP = 100 : ADY =  -1 : LOP
LEA = LOGO
REP = 50
  LEA = LOGO
  ADY = 1 : ADH = -1
  LEA = SPRITE
  IDN = 1 : ADZ = 5 : ADA = -1
LOP
LEA = SPRITE : IDN = 1 : MVA = 0
LEA = LOGO
IDL = 3DVECTOR
LEA = SPRITE : IDN = 6 : MVX = 200 : MVY = 150
REP = 54
    ADA = 4 : ADZ = -1 : ADY = -1 : ADX = -1
LOP
IDL = TRAINER : IDN = 7
REP = 50 : ADA = 2 : LOP
NOP = 4
LEA = SPRITE : IDN = 6
REP = 40 : ADX = -2 : LOP
REP = 100 : ADX = 2 : ADA = 2 : LOP
REP = 100 : ADX = 2 : ADA = -2 : LOP
MVA = 0
CAL = MASK : LEA = LOGO
REP = 50 : ADX = -2 : ADY = -1 : LOP
STP = MASK
REP = 200 : ADX = 2 : LOP
CAL = MASK
REP = 100 : ADX = -2 : LOP
STP = MASK
REP = 125 : AAX = 1 : ADH = -2 : ADW = 2 : ADA = -2 : ADY = 2
LOP
STP = LOGO
LEA = 3DVECTOR : IDN = 4
REP = 200 : ADY = 2 : LOP
STP = 3DVECTOR+DISPLAY
NOP = 1
STP = STARS
LEA = SPRITE : IDN = 7 : MVA = 0
RTS

Finalizing

For all of my OSDM productions, tools by me and others, Oldskool Demomaker resources and communities, check out the OSDM Section of my web site.

Enjoy!

Cheers!
Carsten aka Roy/SAC
